Algeria

Algeria

The flag of the Democratic and Popular Republic of Algeria is constituted by a green and white rectangle embossed by a red star and a red crescent.

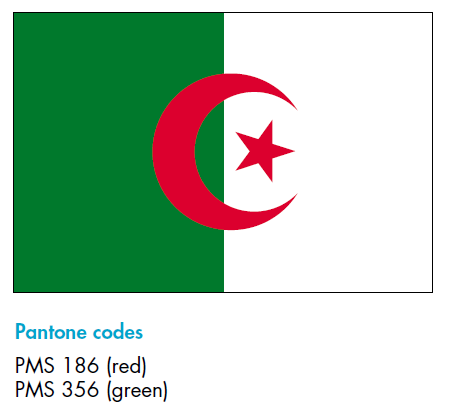

Editor's note: I could not find an original scan of the relevant law online, and so rely on an archived page from the Permanent Mission of Algeria to the UN, courtesy of Flags of the World. Despite pouring over Rood's work, I could not figure how to interpret the color instructions provided. The Pantone colors here are used across most supplementary sources. (Interestingly, the one source I could reference directly – the London Olympic manual – has placed the star in the wrong place!)

Construction

Interactive viewer — 85 cost
$$\begin{aligned}\text{─}\!\cap\!\text{─} &\times 25\\\text{─}\!\cap\!\bigcirc &\times 35\\\bigcirc\!\cap\!\bigcirc &\times 25\end{aligned}$$

Sources

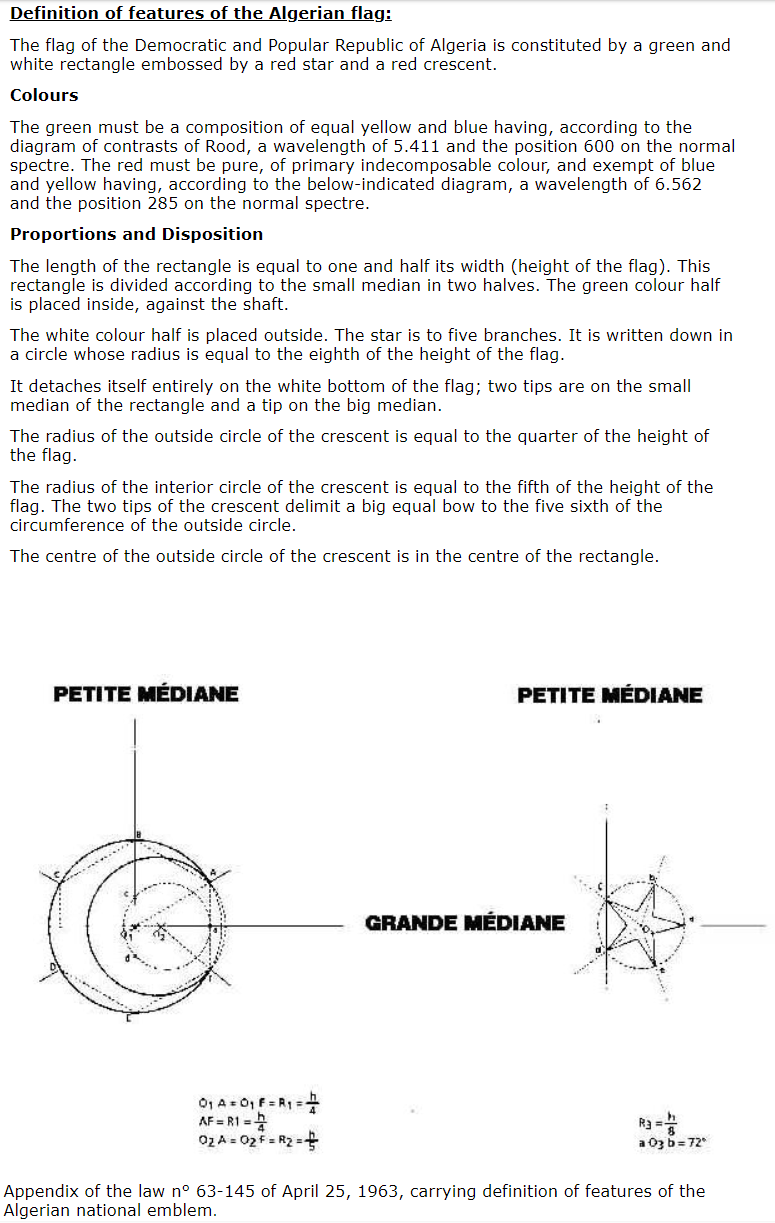

Appendix of the law #63-145 (unsighted) (Description)
356-C (Green (RGB))
186-C (Red (RGB))
(White)

Provenance

PROV-JSON
